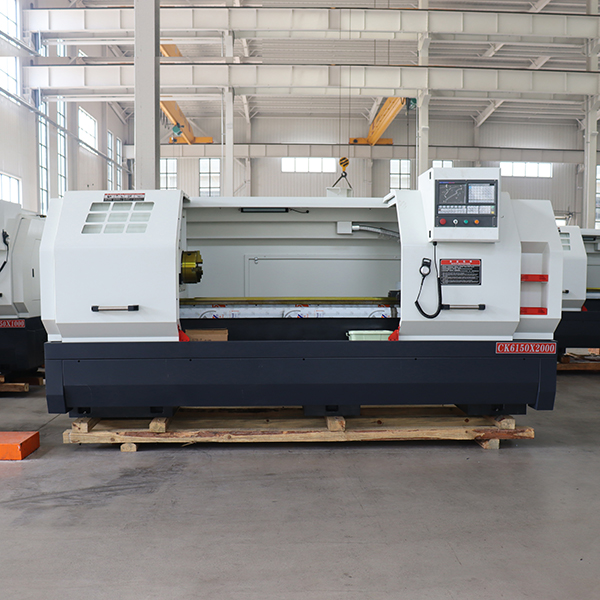

CK6150X2000 CNC Lathe

SPECIFICATIONS CK6150
Maximum turning diameter on the bed 500
The maximum turning diameter of the puller 290
Maximum processing length 750/1000/1500/2000
Max stroke X/ZX:300 Z:750/1000/1500/2000
Main drive form third gear (In-file conversion)
Spindle speed series stepless
Spindle speed range 50-500/300-1100/600-1800
Spindle end form A2-8
Spindle through hole diameter 82/105/130
Spindle hole front taperMT6
Spindle motor power 7.5

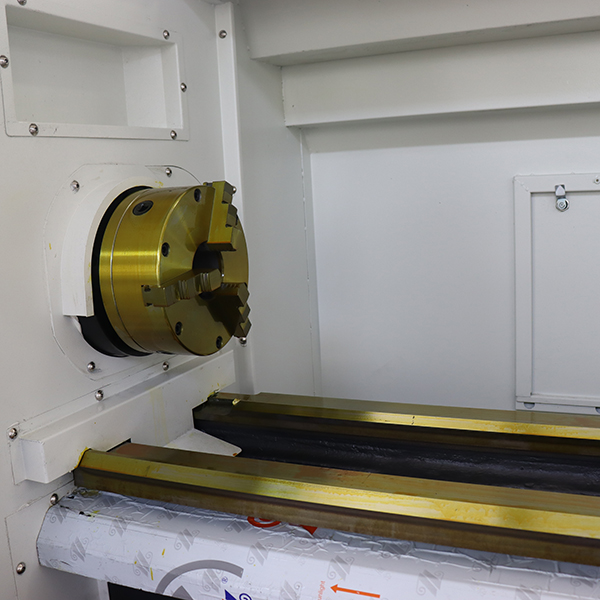

Chuck size 250
Ball Screw Specifications2506/4008
Feed motor torque X/Z5.5/7.5
Fast moving speed X/Z X:6 Z:8
Repeated positioning accuracy(X/Z)±0.005
Workpiece machining accuracyIT6-IT7
Workpiece surface roughnessRal.6
Tailstock sleeve diameter75
Tailstock sleeve stroke 140
Tailstock sleeve taper MT5

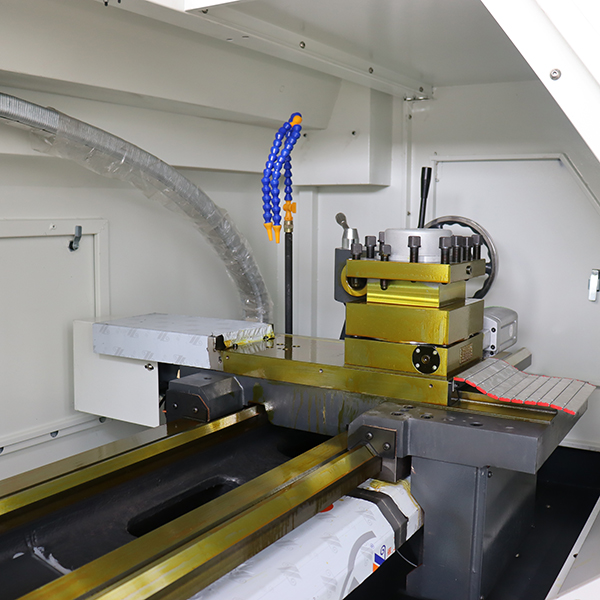

Tool holder form Electric four-station
Tool dimensions 25X25
Rail form Shan Son+plate rail
total power capacity 12
Dimensions  2500X1500X1690
machine Weight (Approx.)2000
