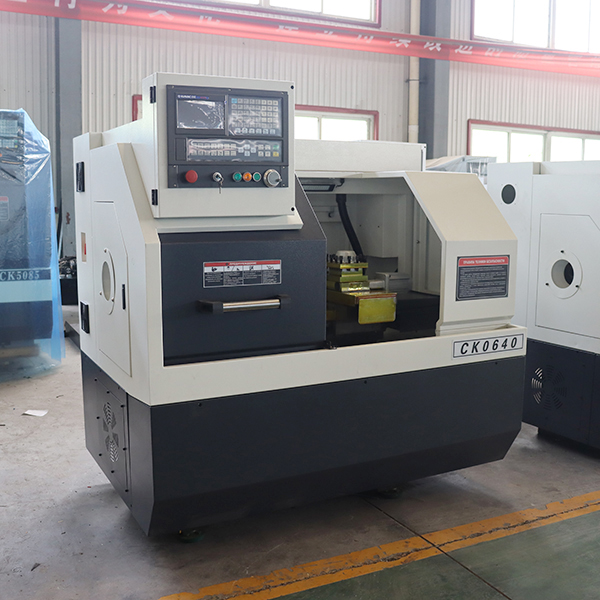

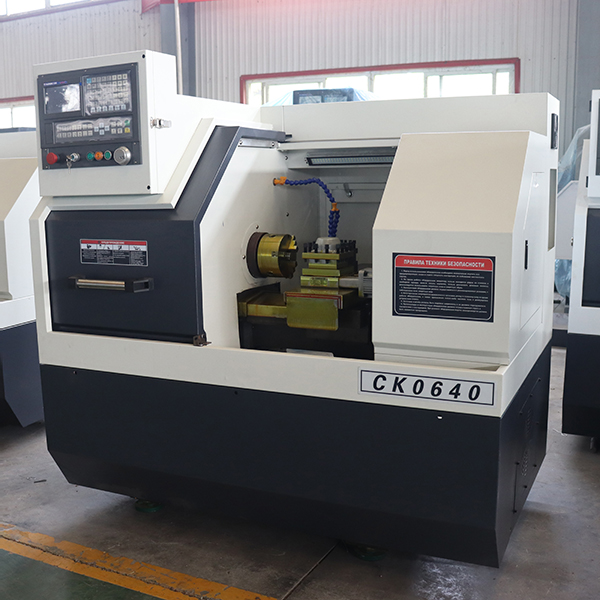

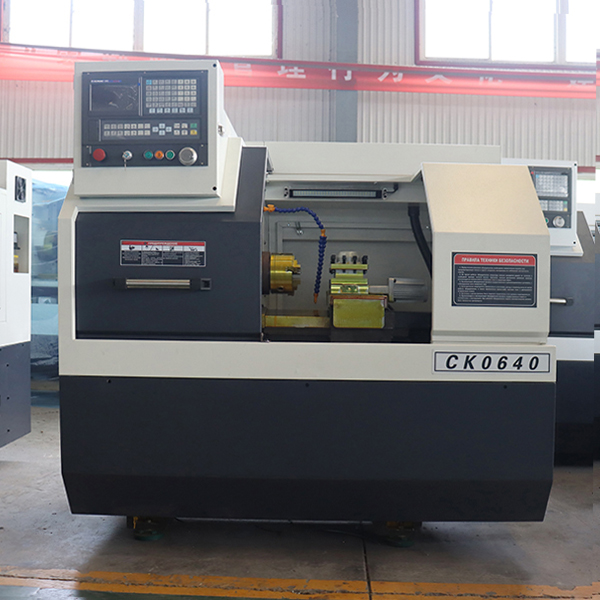

Technical specification | unit | ck0640 |
maximum turning diameter on the bed | mm | 200 |
maximum swivel diameter on the carriage | mm | 100 |
maximum processing length | mm | 200 |
max stroke X/Z | mm | 200/240 |
spindle end form | A2-5 | |
spindle through hole diameter | mm | 48 |
inner diameter of main shaft drawing tube | mm | 40 |
spindle maximum speed | rpm | 2200 |
chuck size | 160 | |
spindle motor power | kw | 3 |
repeated positioning accuracy(x/z) | mm | ±0.005 |
feed motortorque(x/z) | X:4 2:4 | |
X/Zrapid traverse speed | X:6 Z:8 | |
tailstock sleeve diameter | mm | 52 |
tailstock sleeve stroke | mm | 90 |
tailstock sleeve taper | mohs | MT4 |

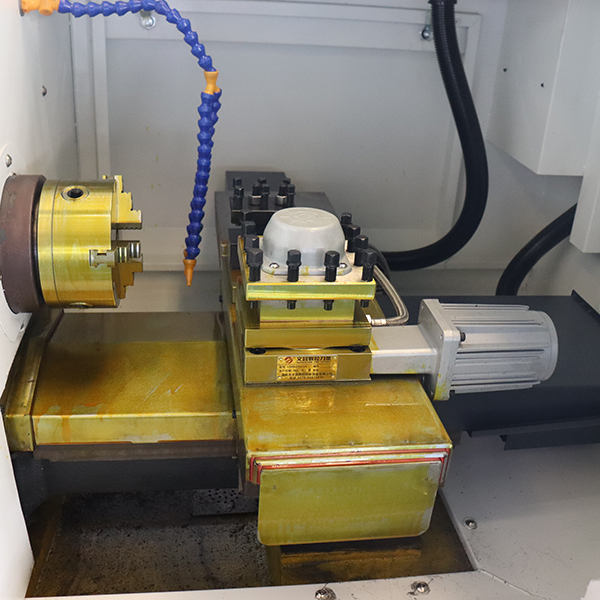

tool holder form | Four-station electric tool holder | |
tool dimensions | 16X16 | |
rail form | twin mountains | |
total power capacity | 7 | |
dimensions | mm | 1500X1000X1600 |
machine weight | kg | 800 |
