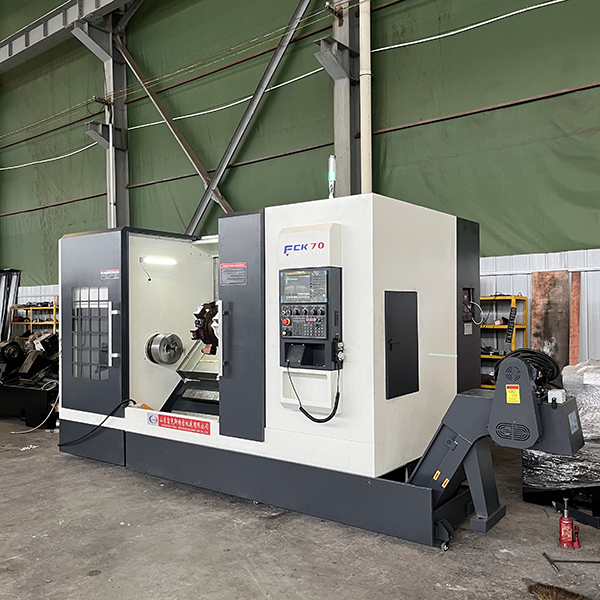

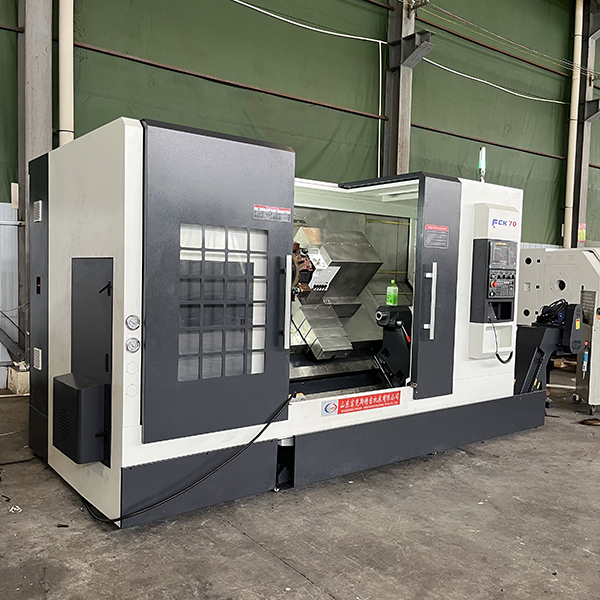

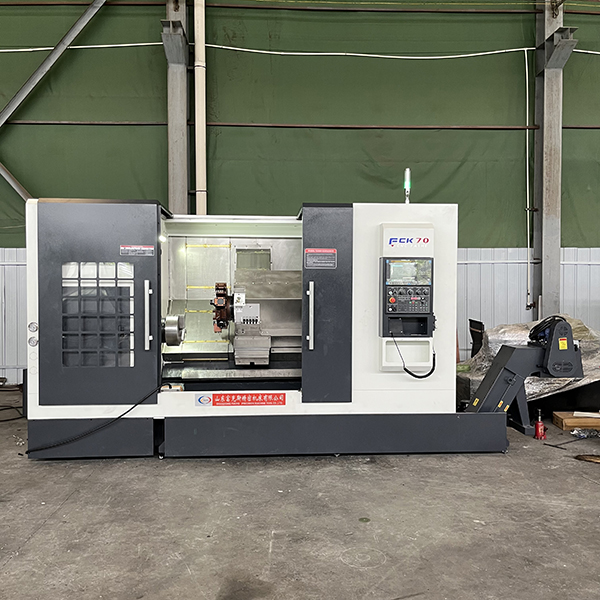

FCK70 Inclined CNC lathe

FCK70  Main parameters
Max.swing diametermmφ540
Swing over cross slidemmφ270
Max.turning lengthmm700
Max.bar through-holemmφ65

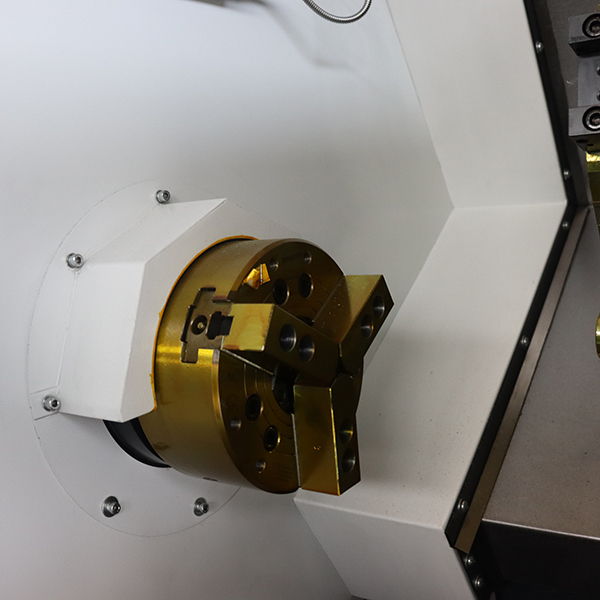

Work piece claping methodN/AHydraulic chuck
Spindie speed rangeRpm100-4500
Spindie nose sizeN/AA2-6
Diameter of spindle through holemm∅66
X-axis rapid traversem/min24m (4010) line rail 35 rollers
Z-axis rapid traversem/min24m (4010) line rail 35 rollers
X-axis travelmm220(φ400)
Z-axis travelmm750
X/Z axis repeating potiong accuracymm0.008

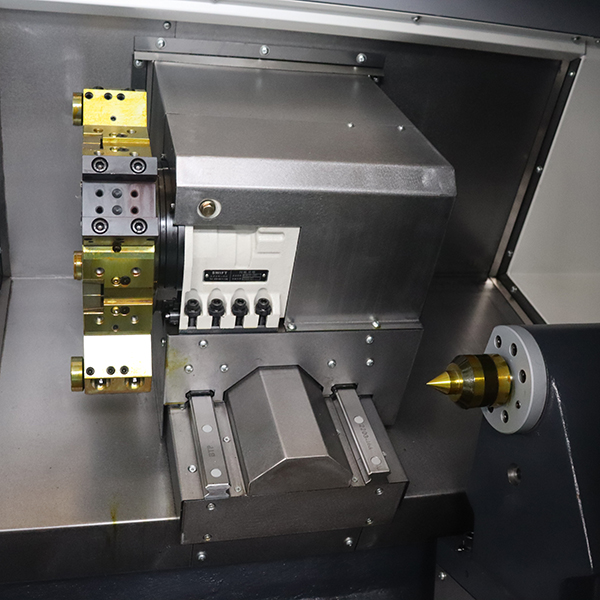

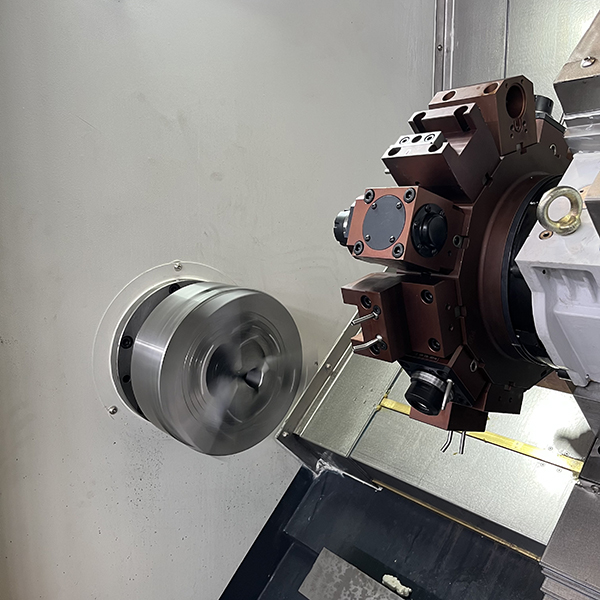

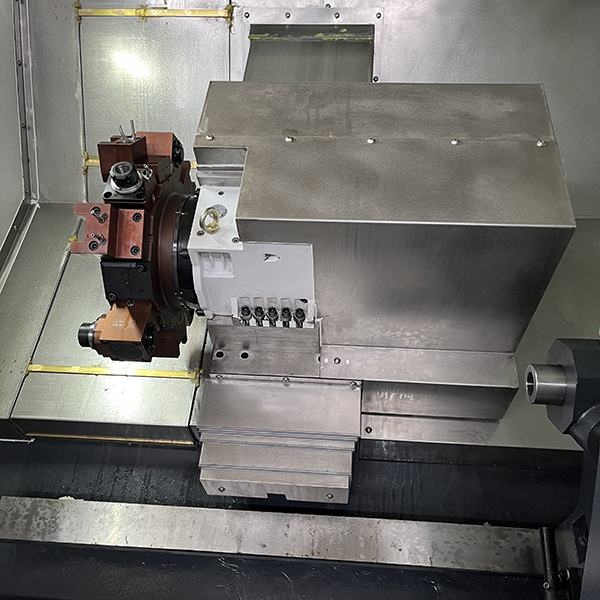

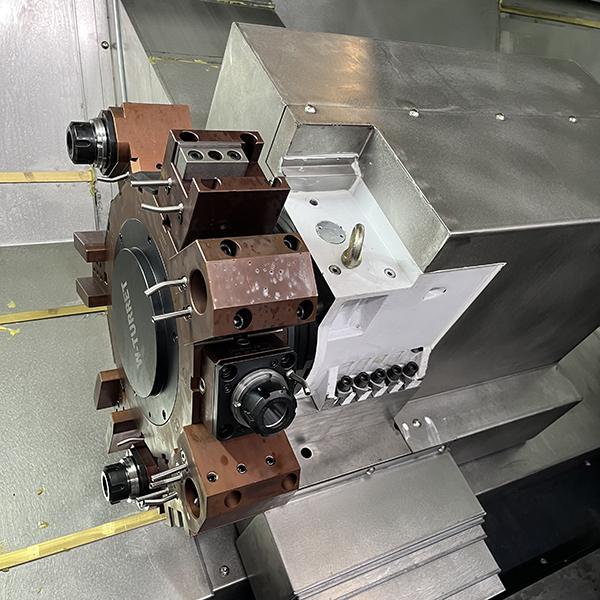

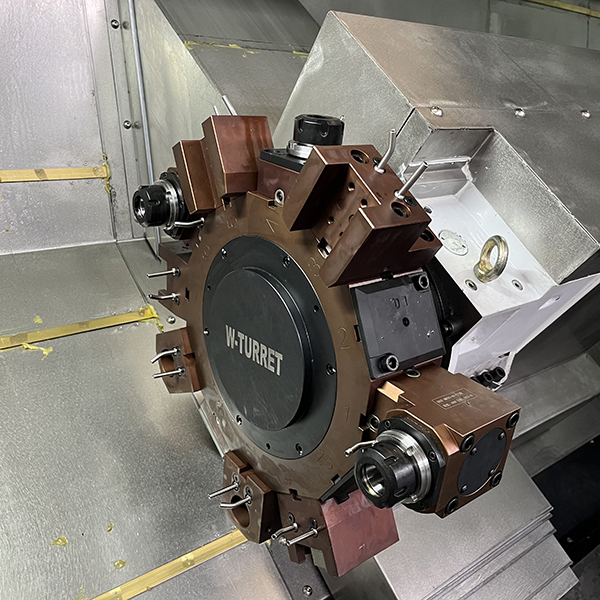

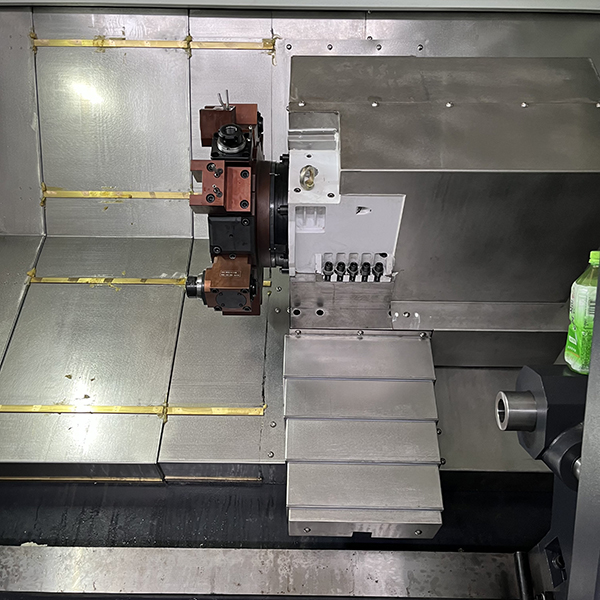

Toolholder trpeN/A8 station 80 hydraulic servo tower
Tool sizemm□25
Maximum boring cutter diametermmφ32

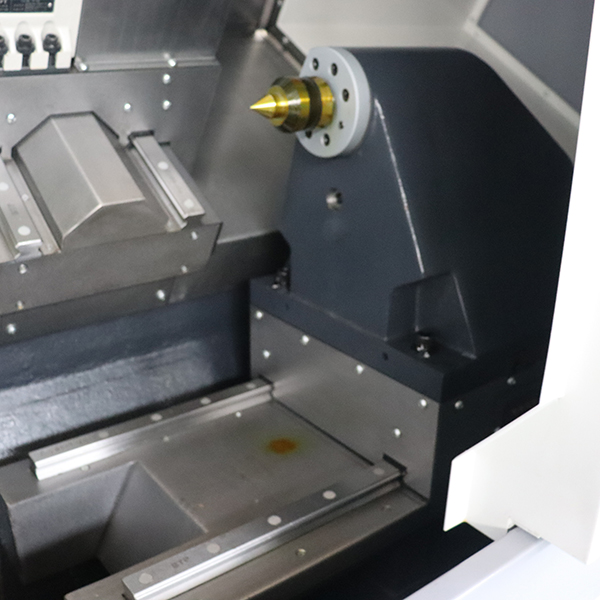

Maximum travel of tailstockmm550
Diameter of tailstock cylinder

mmφ50
Tailstock taper hole
MOE 5
Chip Removal Machine
Side row or rear row
Overall size(L*W*H)mm2920x1680x2070
The bed bottom spindiec enterh eightmm1150
Net weightkg3800
