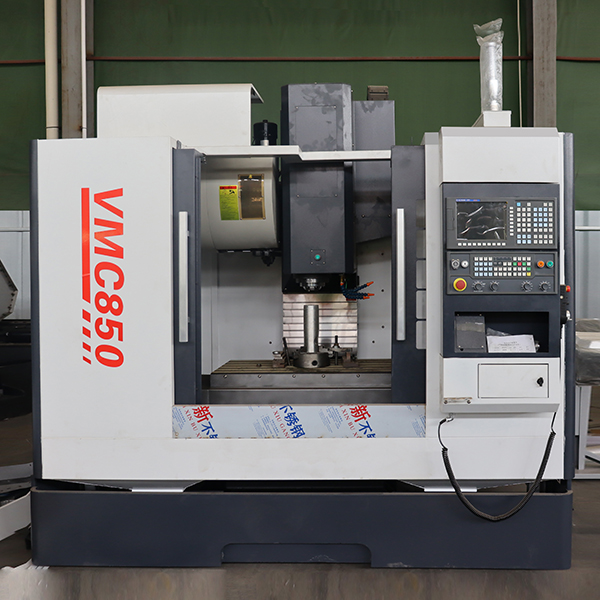

project | unit | vmc850 |
X-axis travel | mm | 800 |
Y-axis travel | mm | 550 |
Z-axis travel | mm | 500 |
table size(L X D) | mm | 1000X500 |
maximum table load | kg | 500 |
T-slot(solt numberX widthX pitch) | mm | 5X18X100 |
spindle taper | BT40 | |
spindle power | KW | 11 |
maximum spindie speed | rpm | 8000 |
rapid traverse(X/Y) | m/min | 48/48/48 |
cutting feed | mm/min | 1-8000 |
spindle nose to table | mm | 130-630 |
spindle center to clumn surface distance rail | mm | 525 |
maximum tool diameter | mm | φ78/φ120 |
maximum table length | mm | 300 |
maximum table weight | kg | 8 |
positioning accuracy | mm | ±0.0075 |
repeat accuracy | mm | ±0.005 |
machine weight(about) | kg | 5600 |
dimensions | mm | 2600X2300X2800 |
