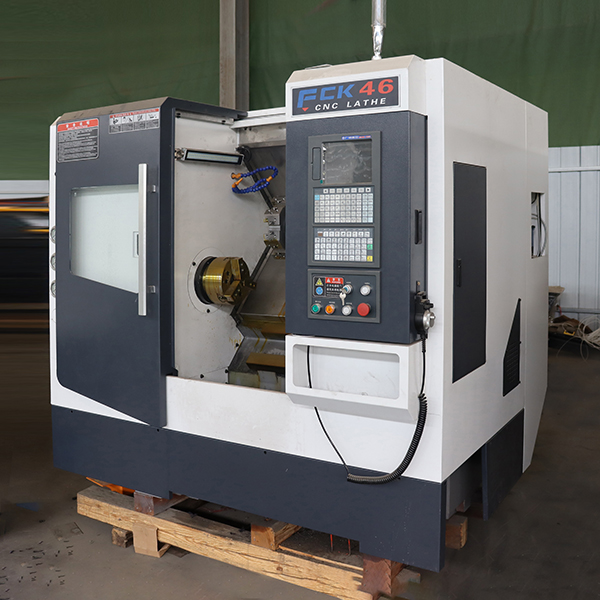

FCK46 Main parameters | ||
Max.swing diameter | mm | φ490 |
Swing over cross slide | mm | ∅400 |
Max.turning length | mm | 400 |
Max.bar through-hole | mm | φ50 |

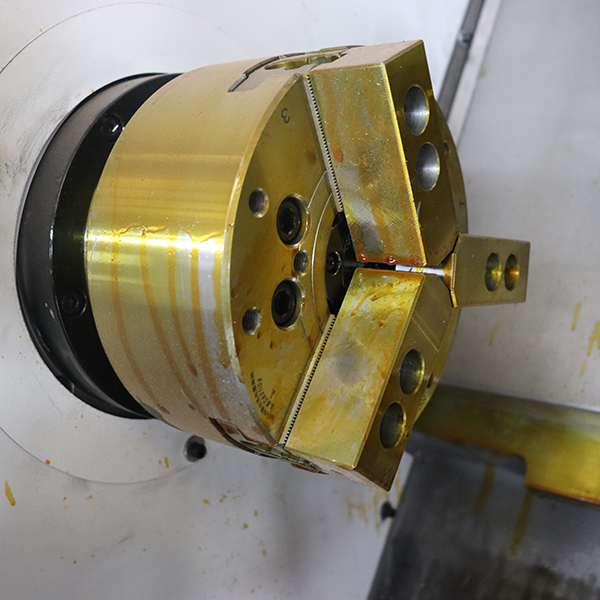

Work piece claping method | N/A | Hydraulic chuck |
Spindie speed range | Rpm | 100-3000 |
Spindie nose size | N/A | A2-6 |
Diameter of spindle through hole | mm | φ62 |
X-axis rapid traverse | m/min | 20(12) |
Z-axis rapid traverse | m/min | 20(12) |
X-axis travel | mm | 200 (diameter 400) |
Z-axis travel | mm | 450 |
X/Z axis repeating potiong accuracy | mm | 0.003 |
Toolholder trpe | N/A | 12 station 80 hydraulic servo tower |
Tool size | mm | 25X25 |
Maximum boring cutter diameter | mm | φ32 |
Maximum travel of tailstock | mm | 450 |
Diameter of tailstock cylinder | mm | φ52 |
Tailstock taper hole | Mo Type 4 | |
Chip Removal Machine | Side row or rear row | |
Overall size(L*W*H) | mm | 2400*1700*1750 |
The bed bottom spindiec enterh eight | mm | 965 |
Net weight | kg | ≈3050 |
