| SPECIFICATIONS | UNIT | CK6180 |
| Maximum turning diameter of the bed | mm | φ800 |
| Maximum turning diameter on the pallet | mm | φ450 |
| maximum processing length | mm | 1000/1500/2000/3000 |
| Spindle drive from | fourth gear | |
| Spindle speed series | there is no end in the file | |
| Spindle speed | r/min | 30-84/53-150/125-350/300-835 |
| Spindle head from | D11 | |
| Spindle hole front taper | metric system 120 1:20 | |
| Spindle through hole diameter | mm | 105 |
| main motor power | kw | 11 |
| X/Z axis positioning accuracy | mm | 0.025/0.03 |
| X/Z axis repeat positioning accuracy | mm | 0.01/0.015 |
| Workpiece machining accuracy | IT6-IT7 | |
| Work surface roughness | Ra1.6 | |
| Xfast moving speed | mm/min | 4000 |
| Z fast moving speed | mm/min | 6000 |
| Tailstock sleeve diameter | mm | 100 |
| Tail sleeve inner hole taper | MT6 | |
| Tailstock sleeve movement | mm | 250 |

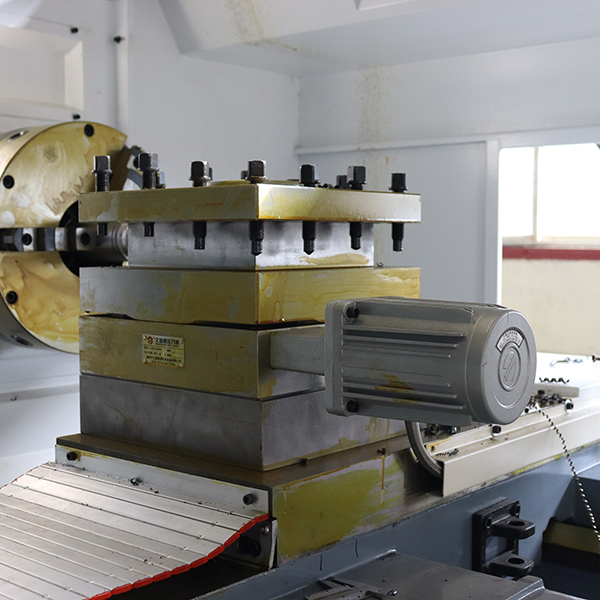

| Tool holder from | electric vertical four male tool holder | |
| Ball screw diameter*pitch | mm | X:30*06 Z:50*10 |
| Knife size | mm | 32/32 |
| Machine dimensions | mm | 3500/4000/4500/5500*1900*1900 |
| Machine weight | kg | 4200/4500/5200/6200 |
