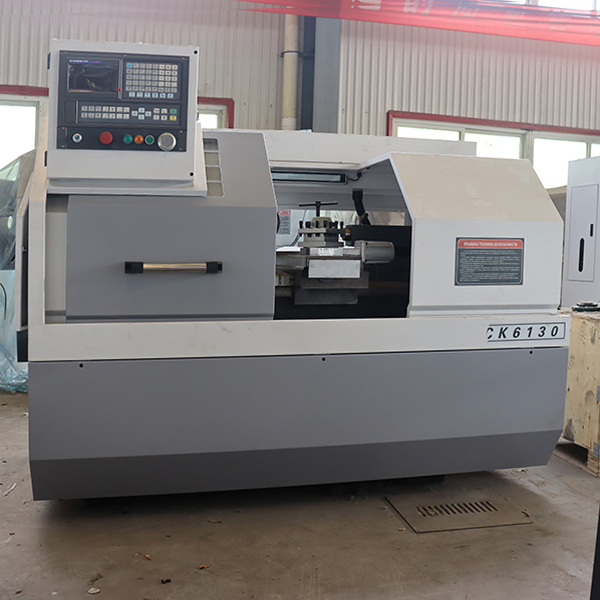

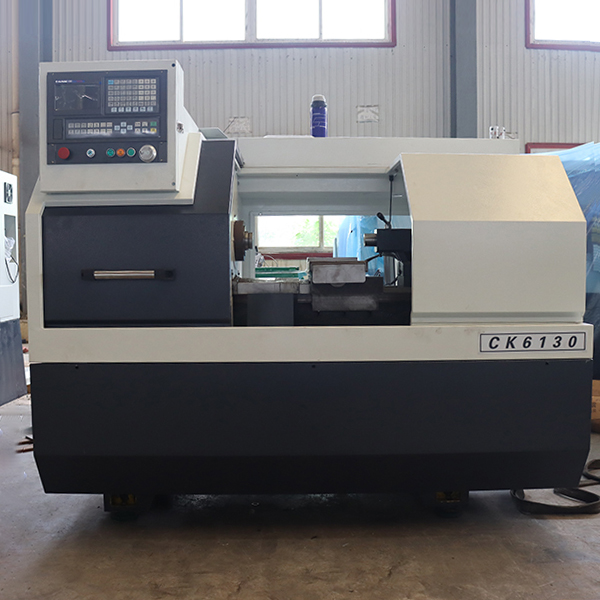

CK6130 CNC Lathe

SPECIFICATIONS UNITCK6130
Maximum turning diameter on the bed mmφ300
Maximum swivel diameter on the carriage mmφ130
Maximum processing length mm400
Max stroke X/Zmm280/400
Spindle end form
A2-5
Spindle through hole diametermmφ48
Inner diameter of main shaft drawing tubemmφ40
Spindle maximum speedrpm2200
Chuck size
160
Spindle motor powerkw 4
Repeated positioning accuracy(X/Z)mm±0.005
Feed motor torque(X/Z)
x:4 2:4
X/Z rapid traverse speed
x:6 z:8
Tailstock sleeve diametermmφ52
Tail sleeve diametermm90
Tail sleeve inner hole taper
MT4
Tailstock sleeve movementmm250

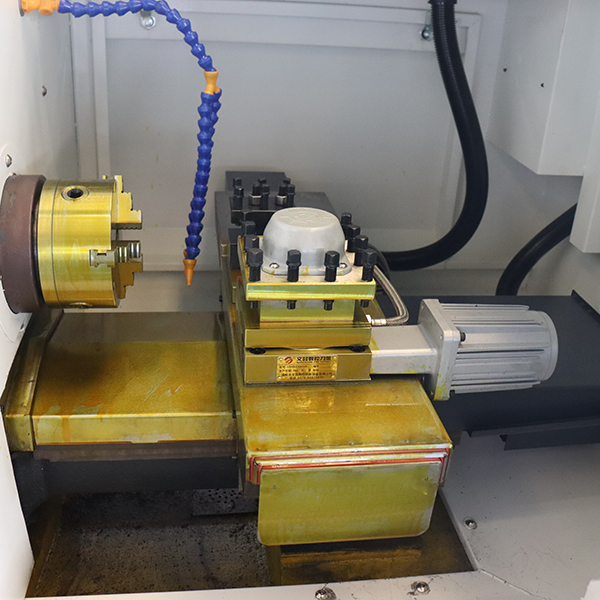

Tool holder form
Electric vertical four-station tool rest
Rail formmmTwin Mountains
Knife size mm7
Machine dimensionsmm1600x1100x1650
Machine weightkg950
