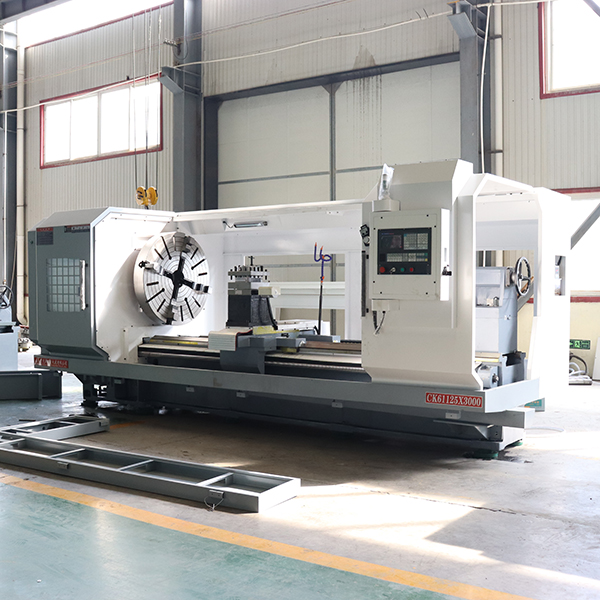

SPECIFICATIONS | CK61125 |
Maximum turning diameter on the bed | 1250 |
The maximum turning diameter of the puller | 800 |
Maximum processing length | 1500/2000/3000 |
Max stroke X/Z | X:4000 Z:6000 |
Main drive form | third gear (In-file conversion) |
Spindle speed series | stepless |
Spindle speed range | 30-800 |
Spindle end form | A2-8 |
Spindle through hole diameter | 105/130 |
Spindle hole front taper | Metric 120 1:20 |
Spindle motor power | 11/15 |

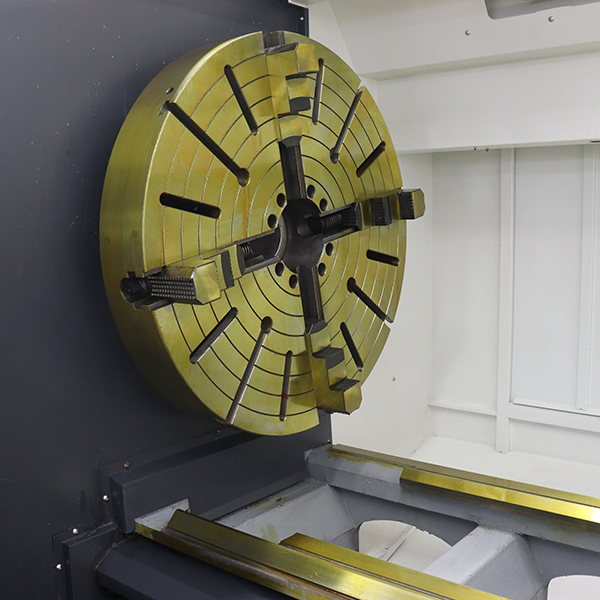

Chuck size | 100/125(cm) |
Ball Screw Specifications | 2506/4008 |
Feed motor torque X/Z | 5.5/7.5 |
Fast moving speed X/Z | X:6 Z:8 |
Repeated positioning accuracy(X/Z) | ±0.005 |
Workpiece machining accuracy | IT6-IT7 |
Workpiece surface roughness | Ral.6 |
Tailstock sleeve diameter | 100 |
Tailstock sleeve stroke | 140 |
Tailstock sleeve taper | MT6 |

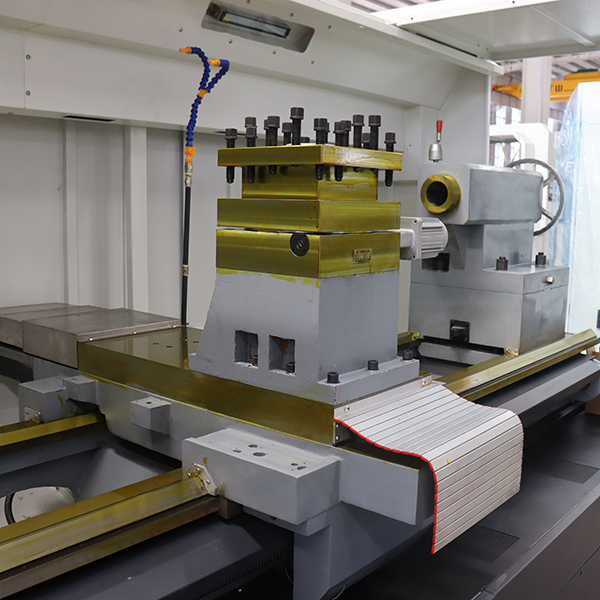

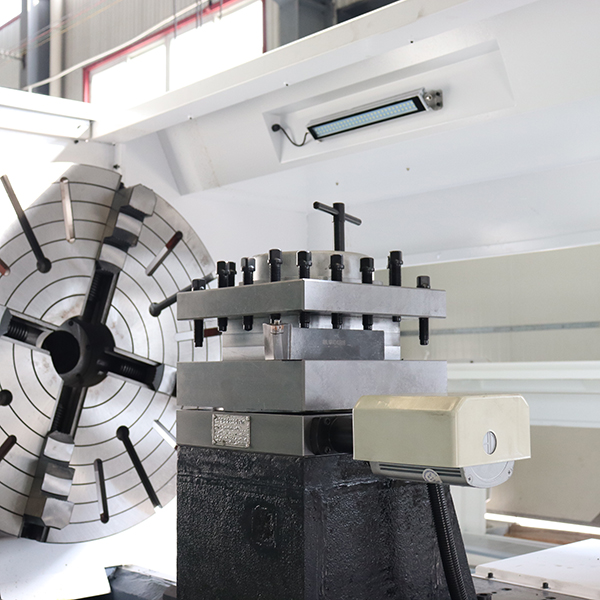

Tool holder form | Electric four-station |
Tool dimensions | 40X40 |
Rail form | Shan Son+plate rail |
total power capacity | 12 |
Dimensions | 4700*2000*2200 |
machine Weight (Approx.) | 14400 |
