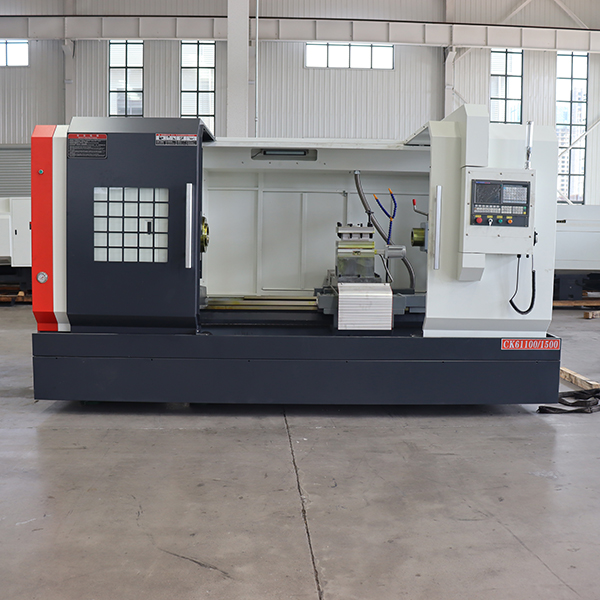

SPECIFICATIONS | UNIT | CK61100 |
Maximum turning diameter of the bed | mm | φ1000 |
Maximum turning diameter on the pallet | mm | φ630 |
maximum processing length | mm | 1500/2000/3000 |
Spindle drive from | fourth gear | |
Spindle speed series | there is no end in the file | |
Spindle speed | r/min | 30-84/53-150/125-350/300-835 |
Spindle head from | D11 | |
Spindle hole front taper | metric system 120 1:20 | |
Spindle through hole diameter | mm | 105 |
main motor power | kw | 11 |
X/Z axis positioning accuracy | mm | 0.025/0.03 |
X/Z axis repeat positioning accuracy | mm | 0.01/0.015 |
Workpiece machining accuracy | IT6-IT7 | |
Work surface roughness | Ra1.6 | |
Xfast moving speed | mm/min | 4000 |
Z fast moving speed | mm/min | 6000 |
Tailstock sleeve diameter | mm | 100 |
Tail sleeve inner hole taper | MT6 | |
Tailstock sleeve movement | mm | 250 |

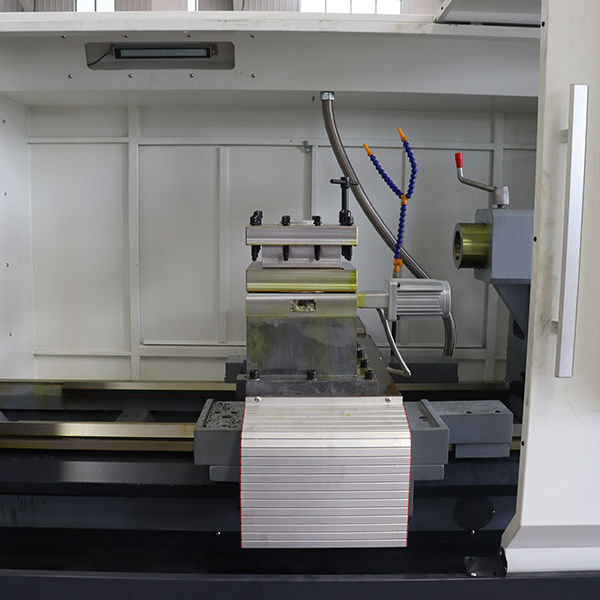

Tool holder from | electric vertical four male tool holder | |
Ball screw diameter*pitch | mm | X:30*06 Z:50*10 |
Knife size | mm | 40x40 |
Machine dimensions | mm | 3600/4100/4600/5600*1950*2000 |
Machine weight | kg | 4800/5600/6700 |
