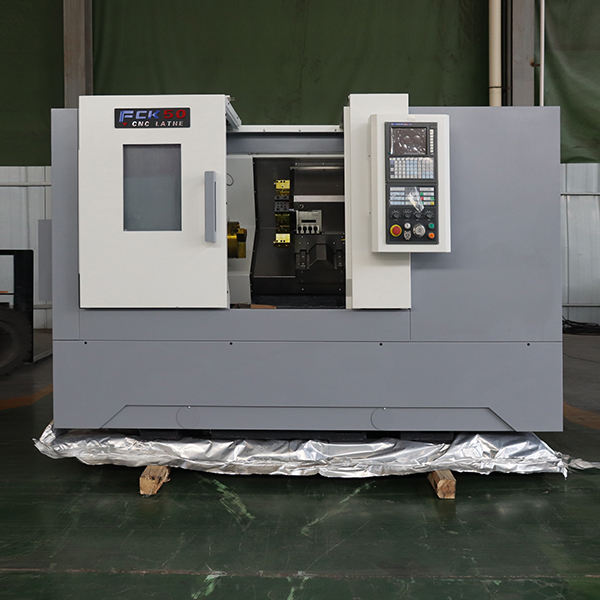

FCK50 Inclined CNC lathe

FCK50  Main parameters
Max.swing diametermm∅500
Swing over cross slidemm∅400
Max.turning lengthmm430
Max.bar through-holemm∅55

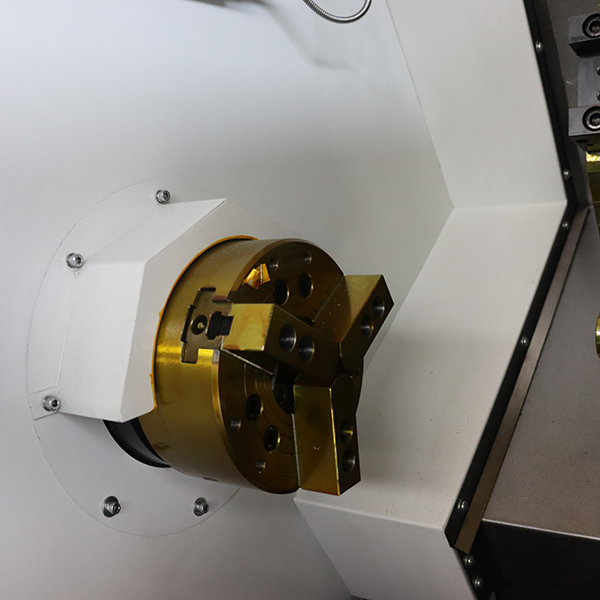

Work piece claping methodN/AHydraulic chuck
Spindie speed rangeRpm100-4500
Spindie nose sizeN/AA2-6
Diameter of spindle through holemm∅66
X-axis rapid traversem/min24m (4010) line rail 35 rollers
Z-axis rapid traversem/min24m (4010) line rail 35 rollers
X-axis travelmm200(diameter 400)
Z-axis travelmm480
X/Z axis repeating potiong accuracymm0.003

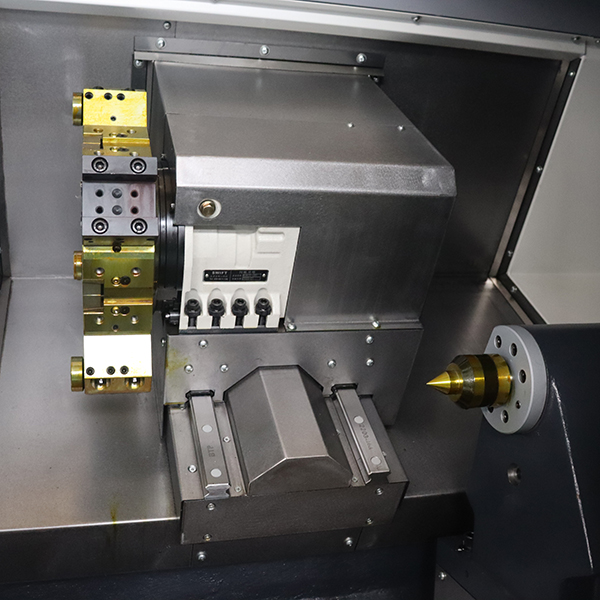

Toolholder trpeN/A8 station 80 hydraulic servo tower
Tool sizemm□25
Maximum boring cutter diametermmφ32

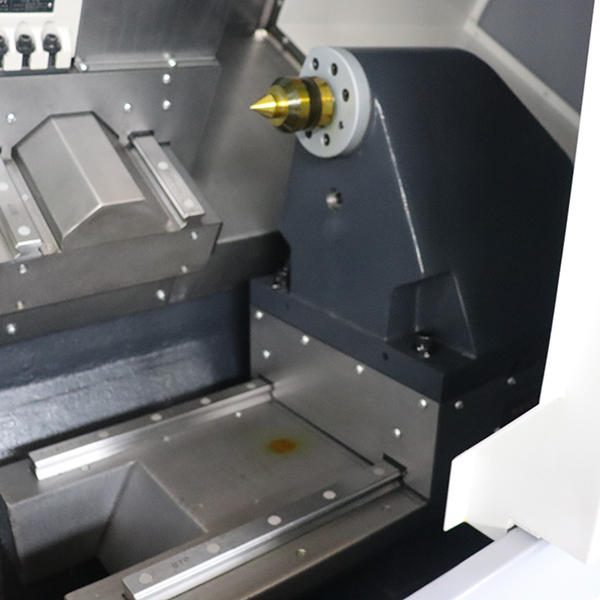

Maximum travel of tailstockmm450
Diameter of tailstock cylinder

mmφ50
Tailstock taper hole
Mo Type 4
Chip Removal Machine
side row or rear row
Overall size(L*W*H)mm2560*11740*1750
The bed bottom spindiec enterh eightmm1150
Net weightkg约3000
