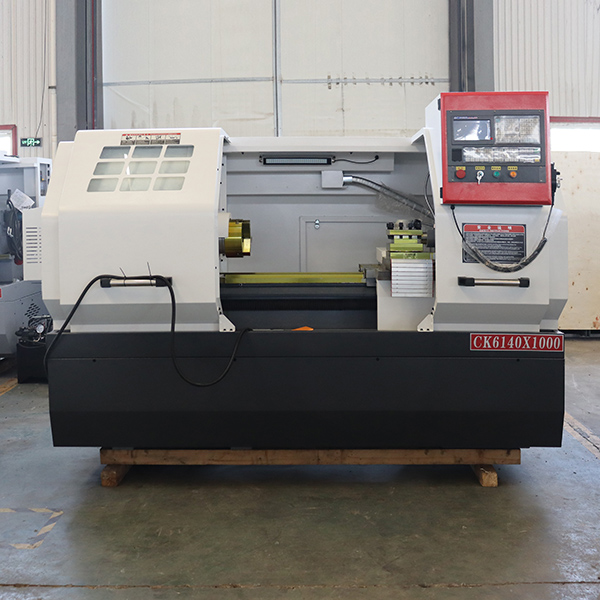

SPECIFICATIONS | UNIT | CK6140 |
Maximum turning diameter on the bed | mm | φ400 |
Maximum swivel diameter on the carriage | mm | φ200 |
Maximum processing length | mm | 750/1000/1500 |
Max stroke X/Z | mm | X:240 Z:750/1000/1500/2000 |
Spindle end form | A2-6 | |
Spindle through hole diameter | mm | φ52 |
Inner diameter of main shaft drawing tube | mm | φ52 |
Spindle maximum speed | rpm | 2000 |

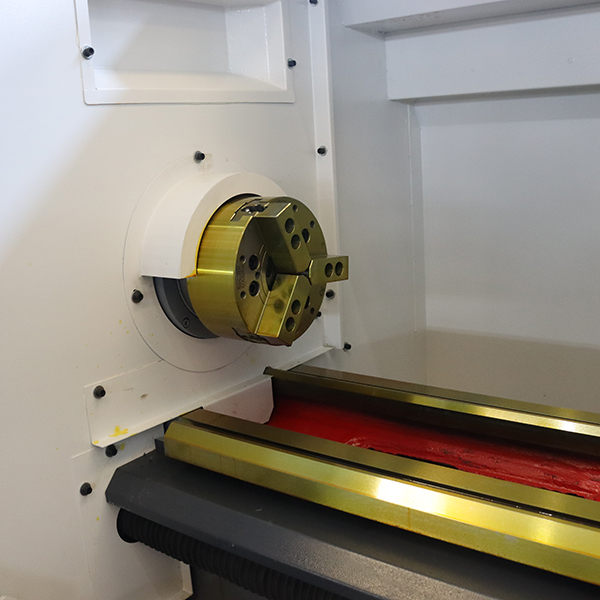

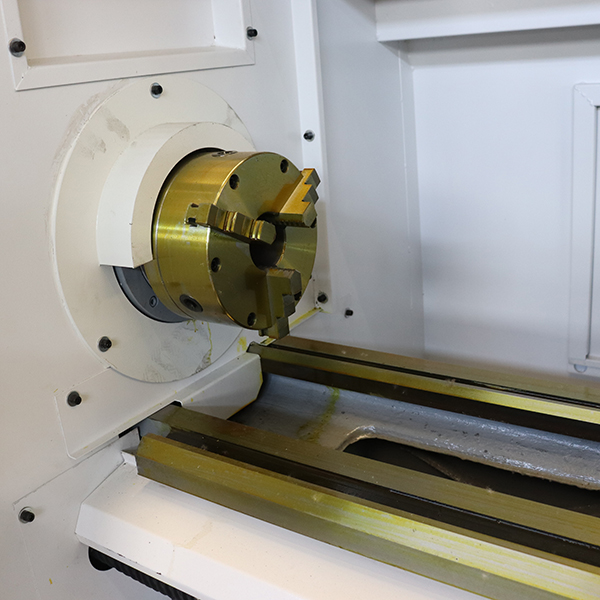

Chuck size | 200 | |
Spindle motor power | kw | 5.5 |
Repeated positioning accuracy(X/Z) | mm | ±0.005 |
Feed motor torque(X/Z) | 2/3 | |
X/Z rapid traverse speed | x:6 z:8 | |
Tailstock sleeve diameter | mm | φ60 |
Tail sleeve diameter | mm | 60 |
Tail sleeve inner hole taper | MT4 | |
Tailstock sleeve movement | mm | 250 |

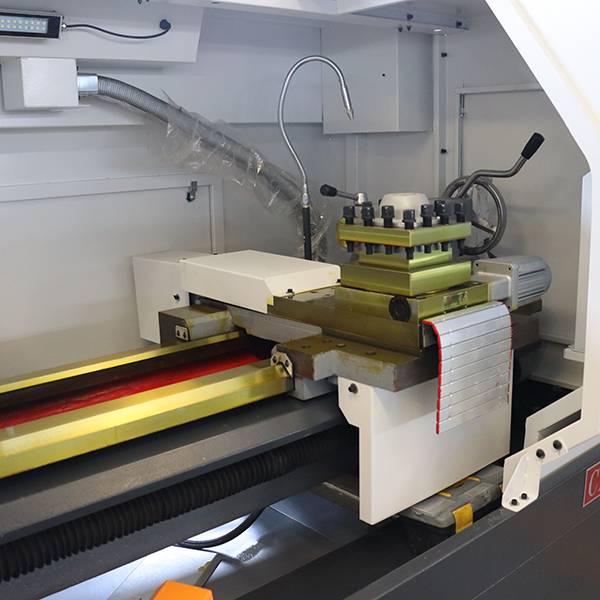

Tool holder form | Electric vertical four-station tool rest | |
Rail form | mm | Single mountain + flat rail |
Knife size | mm | 7 |
Machine dimensions | mm | 2500X500X650 |
Machine weight | kg | 1800 |
