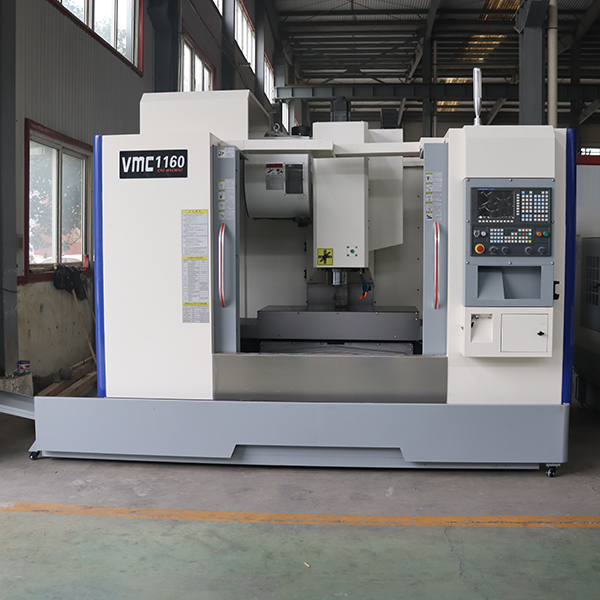

project | unit | VMC1160 |
X-axis travel | mm | 1100 |
Y-axis travel | mm | 600 |
Z-axis travel | mm | 600 |

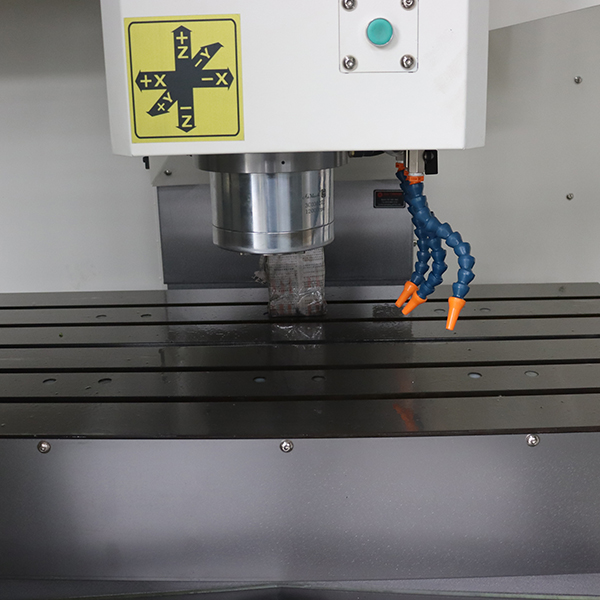

Table size(LxD) | mm | 1200x600 |
Maximun table load | kg | 1000 |
T-slot | mm | 5x18x125 |
spindle taper | BT40 | |
Spindle power | KW | 11/15 |
Maximum spindle speed | rpm | 8000 |
Rapid traverse(X/Y) | mm/min | 36/36/24 |
Fast-moving(Z) | mm/min | 18000 |
Cutting feed | mm/min | 1-8000 |
Feed motor | NM | 20/20/20 |
Spindle nose to table | mm | 140-740 |
Spindle center to column surface distance rail | mm | 650 |
Maximum tool diameter | mm | φ78/φ120 |
Maximum table length | mm | 300 |
Maximum table weight | kg | 8 |
positioning accuracy | mm | ±0.0075 |
Repeat accuracy | mm | ±0.005 |
Machine weight(about) | kg | 7000 |
Dimensions | mm | 3400x2480x2960 |
